Introduction

ANOVA (Analysis of Variance) is a statistical test used to compare the means of three or more groups to see if at least one group is significantly different. If you have only two groups, a t-test is usually better because it is simpler and more powerful for two-group comparisons. However, the t-test can only compare two groups at a time. ANOVA checks for overall differences among all groups.

If gene expression is measured across different conditions (e.g., Control, Treatment A, Treatment B), ANOVA tests whether the average expression levels differ significantly across these conditions.

In scRNA-seq, ANOVA can be useful when analysing gene expression differences across multiple conditions or cell types. If we have three conditions (Control, A, and B) we can use ANOVA to check whether a gene’s expression significantly changes across the conditions. Note that the ANOVA test will indicate that there’s a difference, but not which groups are different (a post-hoc test like Tukey’s HSD can be used). Tukey’s HSD (Honestly Significant Difference) test can be used to determine which specific groups are significantly different from each other. It compares all possible group pairs and controls for multiple testing.

The Mathematics Behind ANOVA

What is Sum of Squares?

Sum of Squares (SS) measures the total amount of variation in data. It is calculated by summing the squared differences between each observation and a reference point (usually a mean). We square the differences so that positive and negative deviations don’t cancel out.

\[SS = \sum(x_i - \bar{x})^2\]

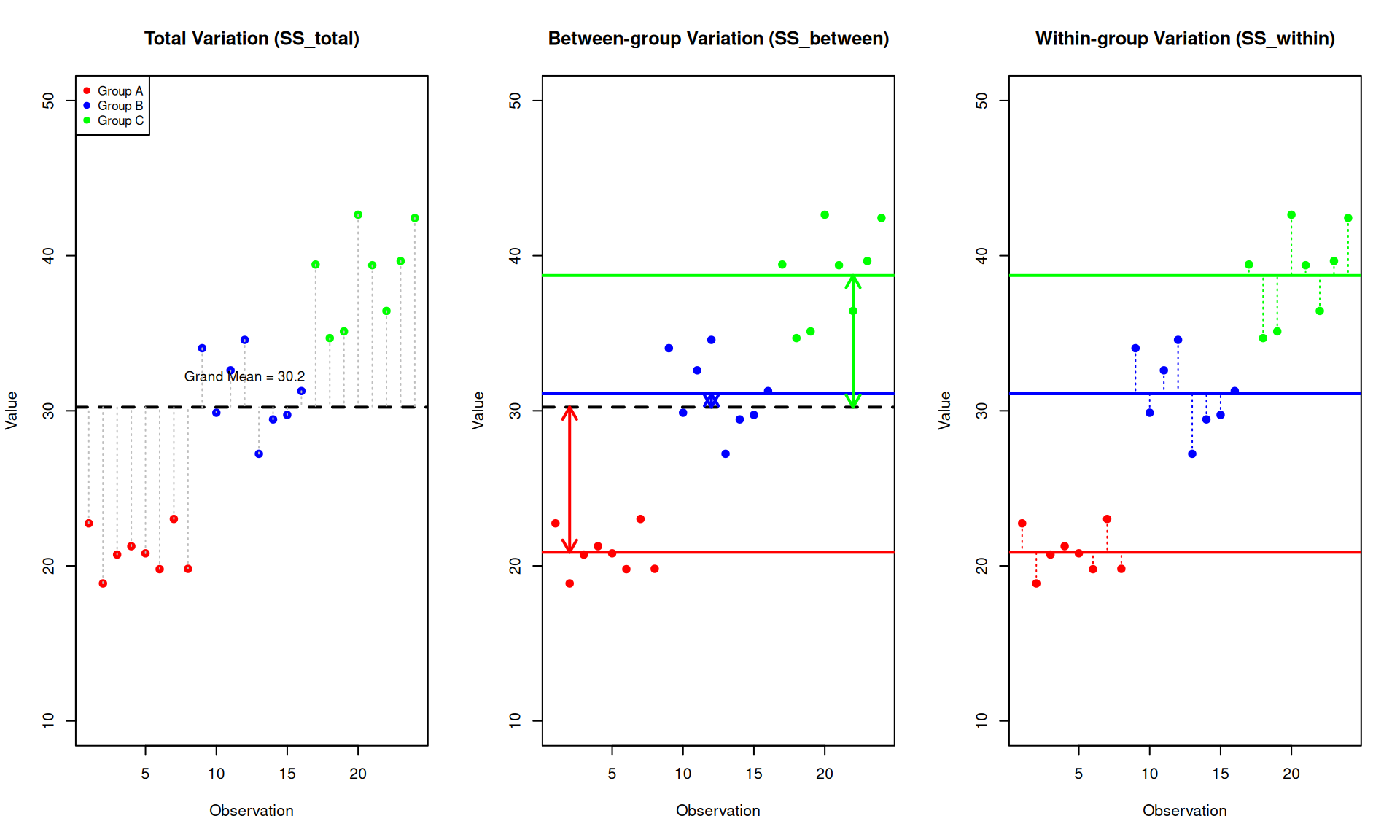

The key insight of ANOVA is that we can partition the total variation into meaningful components:

\[SS_{total} = SS_{between} + SS_{within}\]

This partitioning allows us to ask: “How much of the total variation is due to differences between groups versus variation within groups?”

Understanding Between-group and Within-group Variance

Between-group Variance (\(SS_{between}\))

Between-group variance measures how much the group means differ from the overall (grand) mean. It answers: “How spread out are the group averages?”

• If all groups have similar means → \(SS_{between}\) is small
• If group means are very different → \(SS_{between}\) is large

This is the variation we are interested in - it represents the effect of our experimental factor (e.g., treatment).

Within-group Variance (\(SS_{within}\))

Within-group variance measures how much individual observations vary around their own group mean. It answers: “How spread out are observations within each group?”

• This represents random variation or measurement error
• Also called “residual” or “error” variance
• It’s the baseline noise we compare our signal against

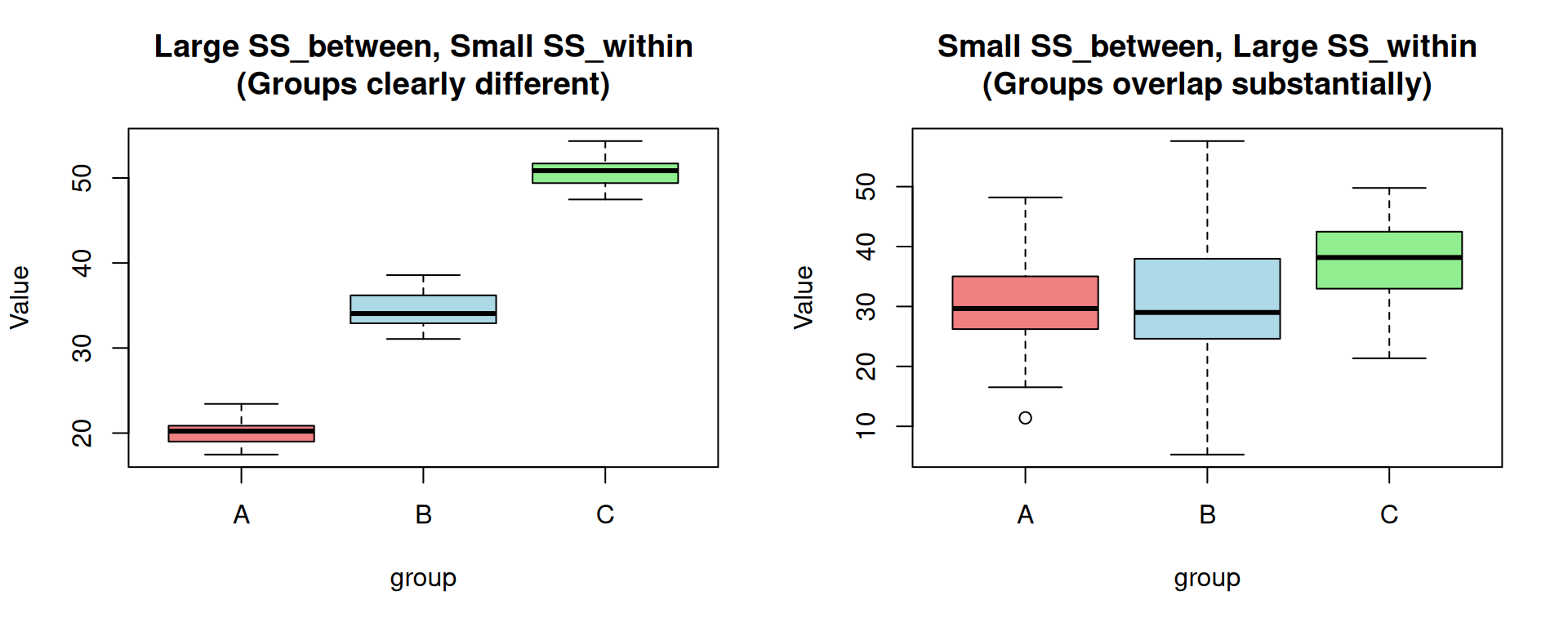

The Key Intuition

ANOVA compares these two sources of variation:

• If \(SS_{between}\) >> \(SS_{within}\): The differences between groups are much larger than the random variation within groups → groups are likely truly different
• If \(SS_{between}\) ≈ \(SS_{within}\): The differences between groups are similar to random variation → groups may not be truly different

The Formulas

Now that we understand the concepts, here are the formal definitions:

Total Sum of Squares - deviation of each observation from the grand mean: \[SS_{total} = \sum_{i=1}^{k}\sum_{j=1}^{n_i}(x_{ij} - \bar{x}_{grand})^2\]

Between-group Sum of Squares - deviation of group means from the grand mean (weighted by group size): \[SS_{between} = \sum_{i=1}^{k}n_i(\bar{x}_i - \bar{x}_{grand})^2\]

Within-group Sum of Squares - deviation of observations from their group mean: \[SS_{within} = \sum_{i=1}^{k}\sum_{j=1}^{n_i}(x_{ij} - \bar{x}_i)^2\]

Where:

• \(k\) = number of groups
• \(n_i\) = sample size of group \(i\)
• \(x_{ij}\) = observation \(j\) in group \(i\)
• \(\bar{x}_i\) = mean of group \(i\)
• \(\bar{x}_{grand}\) = grand mean (mean of all observations)

The F-statistic

The F-statistic is calculated as the ratio of between-group variance to within-group variance:

\[F = \frac{MS_{between}}{MS_{within}} = \frac{SS_{between}/df_{between}}{SS_{within}/df_{within}}\]

Where:

• \(df_{between} = k - 1\) (number of groups minus 1)
• \(df_{within} = N - k\) (total observations minus number of groups)
• \(MS\) = Mean Square (sum of squares divided by degrees of freedom)

A large F-statistic indicates that the between-group variance is larger than expected by chance, suggesting the group means differ.

Manual Calculation Example

Let’s calculate ANOVA by hand to understand the mechanics:

# Three groups with 5 observations each
group_a <- c(23, 25, 27, 22, 24)
group_b <- c(30, 32, 28, 31, 29)
group_c <- c(35, 38, 36, 34, 37)

# Combine data
all_data <- c(group_a, group_b, group_c)
groups <- factor(rep(c("A", "B", "C"), each = 5))

# Calculate means
grand_mean <- mean(all_data)
group_means <- c(mean(group_a), mean(group_b), mean(group_c))
n_per_group <- 5
k <- 3  # number of groups
N <- length(all_data)

cat("Grand mean:", grand_mean, "\n")

Grand mean: 30.06667

cat("Group means:", group_means, "\n")

Group means: 24.2 30 36

# Calculate Sum of Squares
ss_between <- sum(n_per_group * (group_means - grand_mean)^2)
ss_within <- sum((group_a - group_means[1])^2) +
             sum((group_b - group_means[2])^2) +
             sum((group_c - group_means[3])^2)
ss_total <- sum((all_data - grand_mean)^2)

cat("\nSum of Squares:\n")

Sum of Squares:

cat("SS_between:", ss_between, "\n")

SS_between: 348.1333

cat("SS_within:", ss_within, "\n")

SS_within: 34.8

cat("SS_total:", ss_total, "\n")

SS_total: 382.9333

cat("SS_between + SS_within =", ss_between + ss_within, "(should equal SS_total)\n")

SS_between + SS_within = 382.9333 (should equal SS_total)

# Calculate degrees of freedom
df_between <- k - 1
df_within <- N - k

# Calculate Mean Squares
ms_between <- ss_between / df_between
ms_within <- ss_within / df_within

cat("\nMean Squares:\n")

Mean Squares:

cat("MS_between:", ms_between, "\n")

MS_between: 174.0667

cat("MS_within:", ms_within, "\n")

MS_within: 2.9

# Calculate F-statistic
f_stat <- ms_between / ms_within
p_value <- pf(f_stat, df_between, df_within, lower.tail = FALSE)

cat("\nF-statistic:", f_stat, "\n")

F-statistic: 60.02299

cat("p-value:", p_value, "\n")

p-value: 5.632957e-07

Verify with R’s aov() function:

df <- data.frame(value = all_data, group = groups)
anova_result <- aov(value ~ group, data = df)
summary(anova_result)

            Df Sum Sq Mean Sq F value   Pr(>F)
group        2  348.1   174.1   60.02 5.63e-07 ***
Residuals   12   34.8     2.9
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Assumptions of ANOVA

ANOVA has several assumptions that should be checked:

1. Independence of observations

Observations should be independent of each other. This is a study design issue.

2. Normality

The residuals should be approximately normally distributed. Check with:

# Using the manual example data
shapiro.test(residuals(anova_result))

    Shapiro-Wilk normality test

data:  residuals(anova_result)
W = 0.94877, p-value = 0.5053

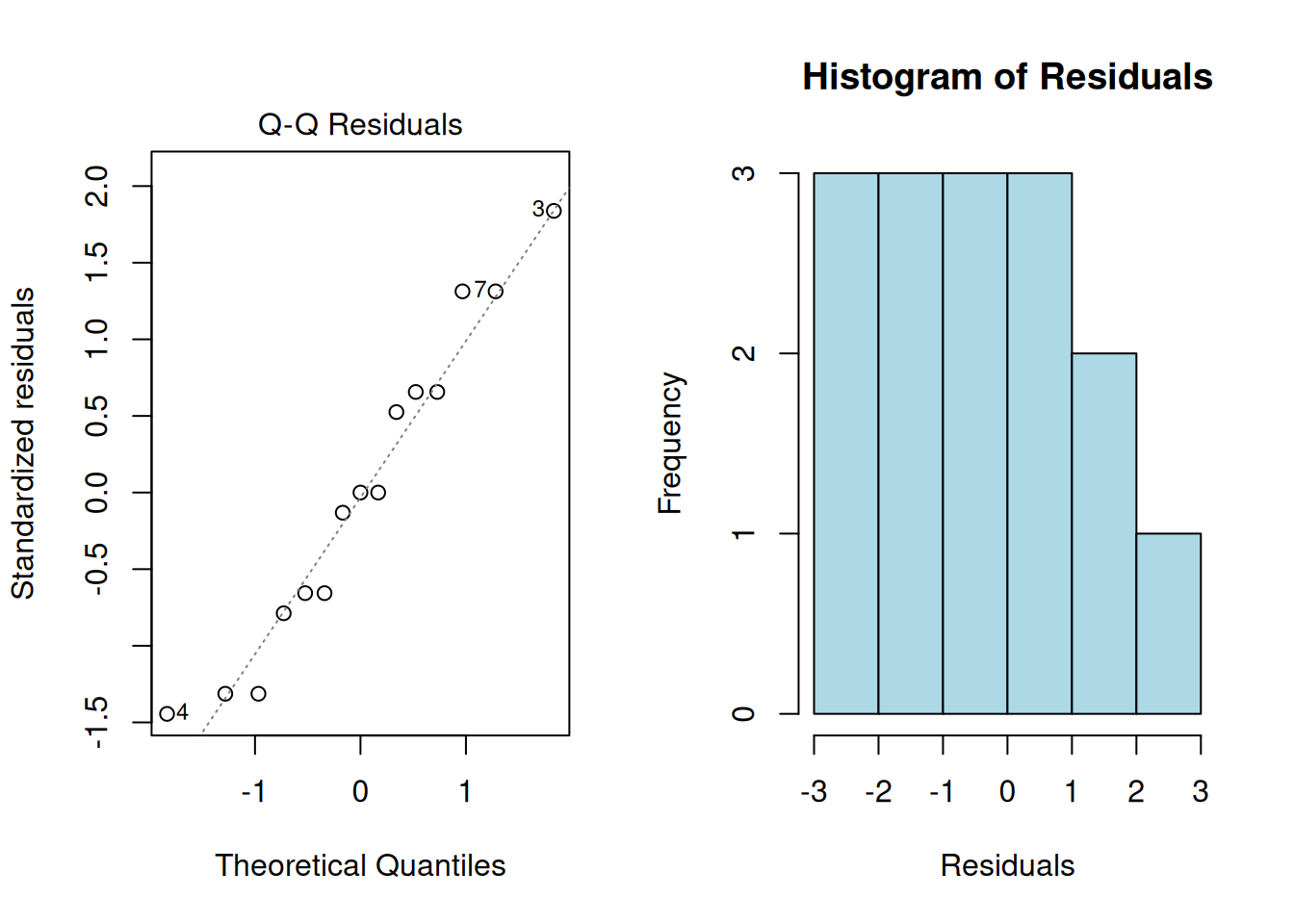

# Q-Q plot
par(mfrow = c(1, 2))
plot(anova_result, which = 2)
hist(residuals(anova_result), main = "Histogram of Residuals",
     xlab = "Residuals", col = "lightblue")

par(mfrow = c(1, 1))

3. Homogeneity of Variances (Homoscedasticity)

The variance should be approximately equal across groups. Check with Levene’s test or Bartlett’s test:

# Bartlett's test (sensitive to non-normality)
bartlett.test(value ~ group, data = df)

    Bartlett test of homogeneity of variances

data:  value by group
Bartlett's K-squared = 0.19158, df = 2, p-value = 0.9087

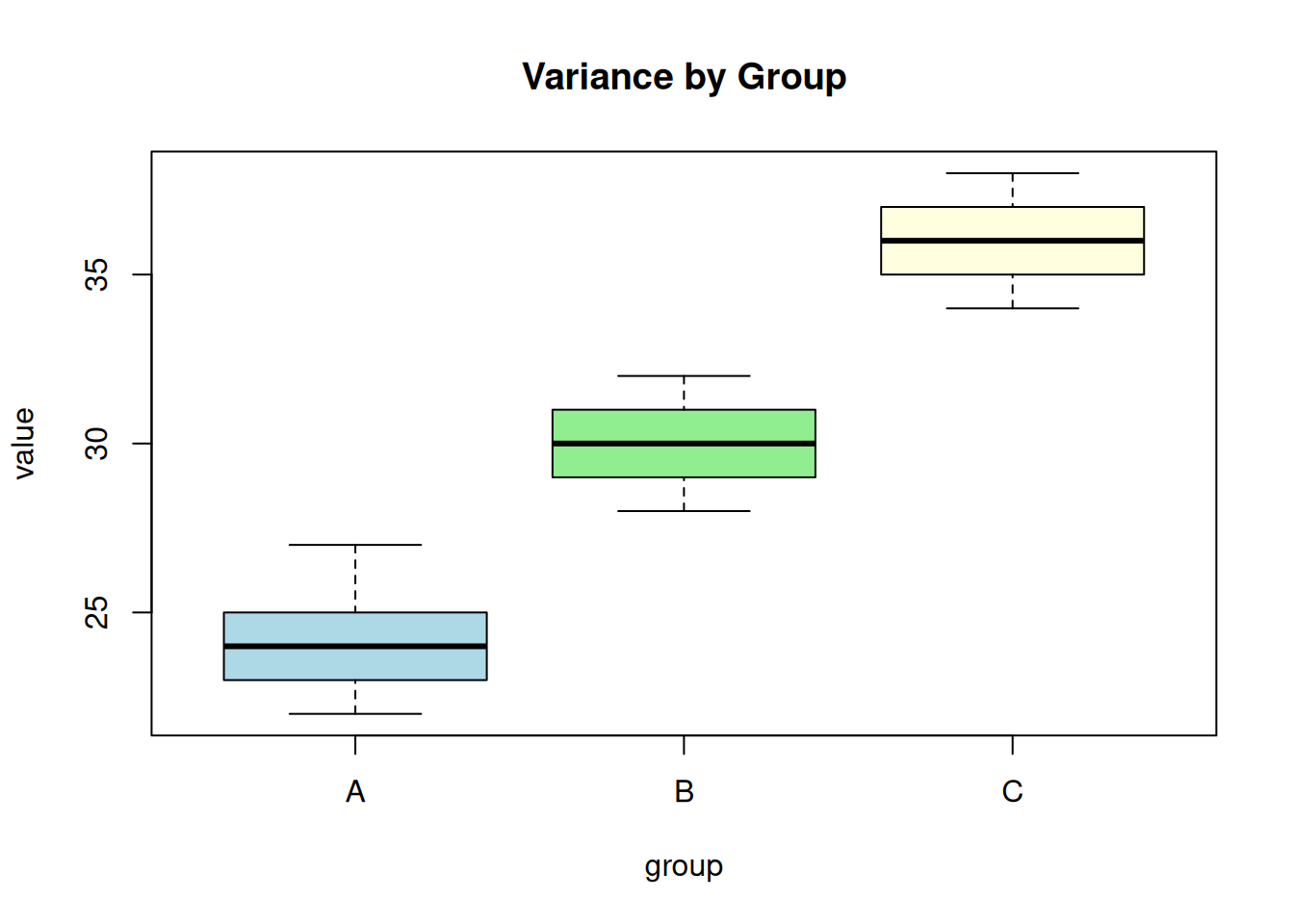

# Visual check
boxplot(value ~ group, data = df, main = "Variance by Group",
        col = c("lightblue", "lightgreen", "lightyellow"))

What if Assumptions are Violated?

Violation	Solution
Non-normality	Use Kruskal-Wallis test (non-parametric)
Unequal variances	Use Welch’s ANOVA
Both	Use Kruskal-Wallis test

# Welch's ANOVA (doesn't assume equal variances)
oneway.test(value ~ group, data = df, var.equal = FALSE)

    One-way analysis of means (not assuming equal variances)

data:  value and group
F = 52.688, num df = 2.0000, denom df = 7.9417, p-value = 2.607e-05

One-way ANOVA for Gene Expression

One-way ANOVA tests for differences in means across groups defined by a single factor.

gene_expr <- data.frame(
  Expression = c(5.2, 4.8, 5.1, 6.3, 6.8, 6.5, 7.2, 7.5, 7.1),
  Condition = rep(c("control", "treated1", "treated2"), each = 3)
)

ggplot(gene_expr, aes(Condition, Expression)) +
  geom_boxplot(fill = "lightblue") +
  geom_jitter(width = 0.1, alpha = 0.7) +
  theme_minimal() +
  labs(title = "Gene Expression by Condition")

Past versions of simple_example-1.png

Version	Author	Date
78ef683	Dave Tang	2025-04-02

anova_result <- aov(Expression ~ Condition, data = gene_expr)
summary(anova_result)

            Df Sum Sq Mean Sq F value   Pr(>F)
Condition    2  7.776   3.888   77.76 5.13e-05 ***
Residuals    6  0.300   0.050
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Understanding the ANOVA Table

Column	Meaning
Df	Degrees of freedom
Sum Sq	Sum of Squares
Mean Sq	Mean Square (Sum Sq / Df)
F value	F-statistic (ratio of Mean Sq)
Pr(>F)	p-value

In this example:

• The F-value is large (50.17)
• The p-value is very small (0.00178)
• Conclusion: There is a statistically significant difference in gene expression between at least two conditions

Post-hoc Tests

ANOVA tells us that groups differ, but not which groups. Post-hoc tests identify specific differences.

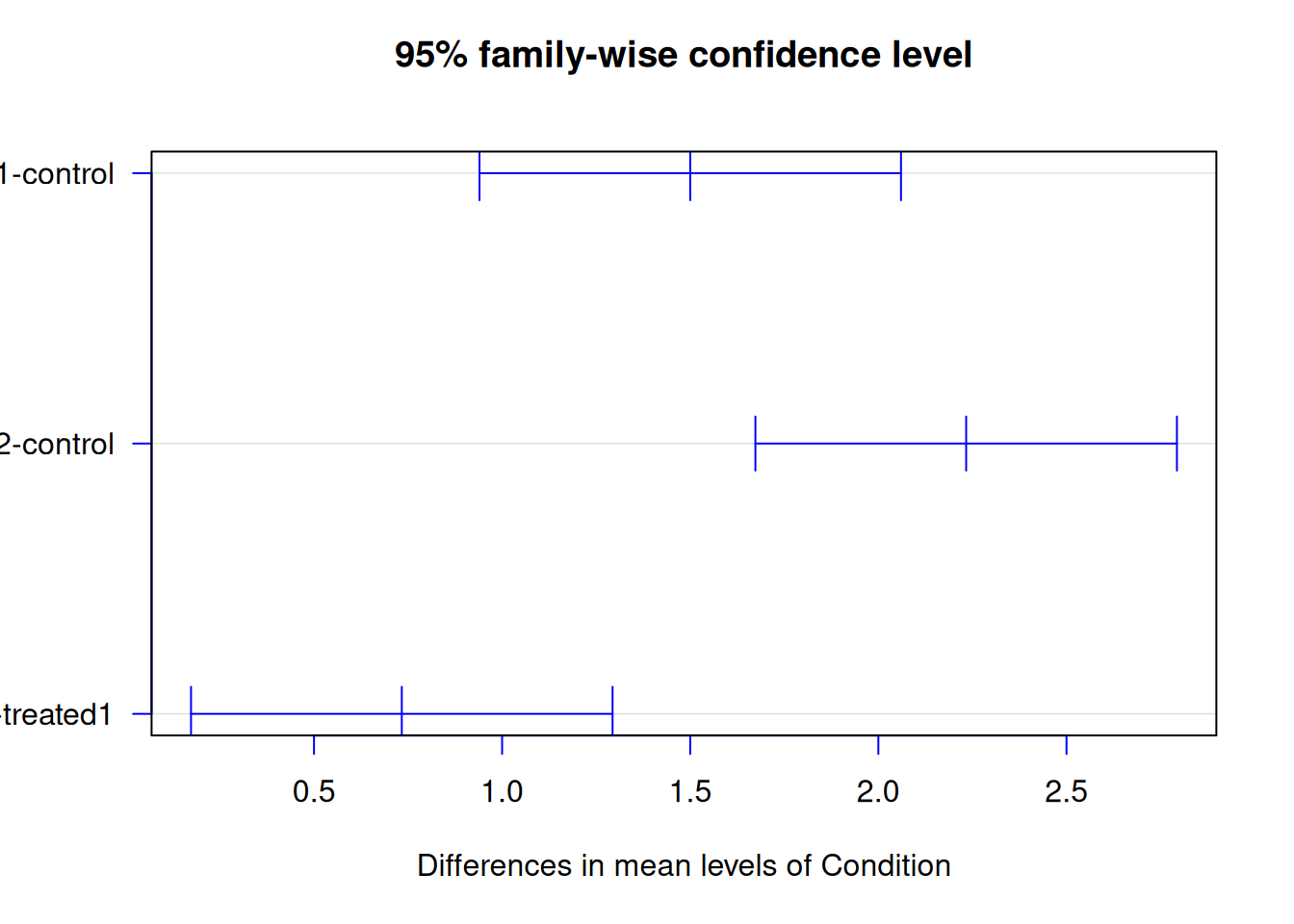

Tukey’s HSD (Honestly Significant Difference)

Tukey’s HSD compares all pairs of groups while controlling for multiple testing:

tukey_result <- TukeyHSD(anova_result)
tukey_result

  Tukey multiple comparisons of means
    95% family-wise confidence level

Fit: aov(formula = Expression ~ Condition, data = gene_expr)

$Condition
                       diff       lwr      upr     p adj
treated1-control  1.5000000 0.9398123 2.060188 0.0004304
treated2-control  2.2333333 1.6731456 2.793521 0.0000448
treated2-treated1 0.7333333 0.1731456 1.293521 0.0164307

Interpretation:

• diff = difference between group means
• lwr and upr = 95% confidence interval for the difference
• p adj = adjusted p-value

If the confidence interval doesn’t include 0, the difference is significant.

plot(tukey_result, las = 1, col = "blue")

Other Post-hoc Tests

# Pairwise t-tests with Bonferroni correction
pairwise.t.test(gene_expr$Expression, gene_expr$Condition, p.adjust.method = "bonferroni")

    Pairwise comparisons using t tests with pooled SD

data:  gene_expr$Expression and gene_expr$Condition

         control treated1
treated1 0.00053 -
treated2 5.5e-05 0.02096

P value adjustment method: bonferroni

# Pairwise t-tests with Holm correction (less conservative)
pairwise.t.test(gene_expr$Expression, gene_expr$Condition, p.adjust.method = "holm")

    Pairwise comparisons using t tests with pooled SD

data:  gene_expr$Expression and gene_expr$Condition

         control treated1
treated1 0.00035 -
treated2 5.5e-05 0.00699

P value adjustment method: holm

Effect Size

Statistical significance doesn’t tell us about practical importance. Effect size measures help:

Eta-squared (\(\eta^2\))

Eta-squared represents the proportion of variance explained by the factor:

\[\eta^2 = \frac{SS_{between}}{SS_{total}}\]

# Extract sum of squares from ANOVA
ss <- summary(anova_result)[[1]]$`Sum Sq`
ss_between <- ss[1]
ss_total <- sum(ss)

eta_squared <- ss_between / ss_total
cat("Eta-squared:", round(eta_squared, 3), "\n")

Eta-squared: 0.963

Omega-squared (\(\omega^2\))

Omega-squared is a less biased estimate:

\[\omega^2 = \frac{SS_{between} - df_{between} \times MS_{within}}{SS_{total} + MS_{within}}\]

ms_within <- ss[2] / summary(anova_result)[[1]]$Df[2]
df_between <- summary(anova_result)[[1]]$Df[1]

omega_squared <- (ss_between - df_between * ms_within) / (ss_total + ms_within)
cat("Omega-squared:", round(omega_squared, 3), "\n")

Omega-squared: 0.945

Interpretation Guidelines

Effect Size	\(\eta^2\) / \(\omega^2\)
Small	0.01
Medium	0.06
Large	0.14

Two-way ANOVA

Two-way ANOVA examines the effect of two factors and their interaction.

# Simulated experiment: Drug effect across different cell types
set.seed(42)
two_way_data <- expand.grid(
  Drug = c("Placebo", "Drug_A", "Drug_B"),
  CellType = c("Type1", "Type2"),
  Replicate = 1:5
)

# Simulate expression values with main effects and interaction
two_way_data$Expression <- with(two_way_data, {
  base <- 10
  drug_effect <- ifelse(Drug == "Placebo", 0,
                        ifelse(Drug == "Drug_A", 3, 5))
  cell_effect <- ifelse(CellType == "Type1", 0, 2)
  # Interaction: Drug_B works better in Type2 cells
  interaction <- ifelse(Drug == "Drug_B" & CellType == "Type2", 3, 0)
  base + drug_effect + cell_effect + interaction + rnorm(nrow(two_way_data), 0, 1)
})

head(two_way_data)

     Drug CellType Replicate Expression
1 Placebo    Type1         1   11.37096
2  Drug_A    Type1         1   12.43530
3  Drug_B    Type1         1   15.36313
4 Placebo    Type2         1   12.63286
5  Drug_A    Type2         1   15.40427
6  Drug_B    Type2         1   19.89388

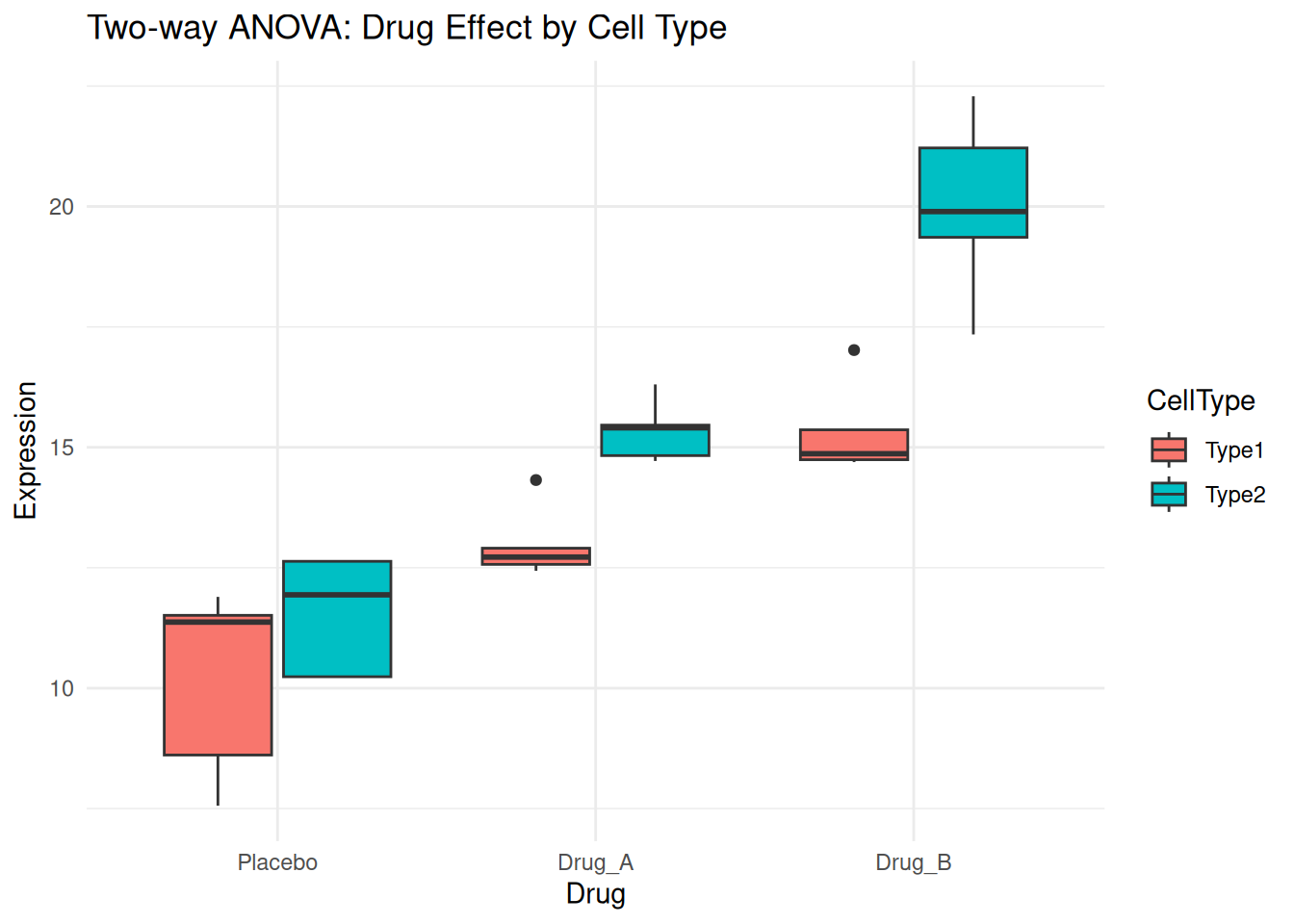

ggplot(two_way_data, aes(Drug, Expression, fill = CellType)) +
  geom_boxplot() +
  theme_minimal() +
  labs(title = "Two-way ANOVA: Drug Effect by Cell Type")

Running Two-way ANOVA

# Two-way ANOVA with interaction
two_way_result <- aov(Expression ~ Drug * CellType, data = two_way_data)
summary(two_way_result)

              Df Sum Sq Mean Sq F value   Pr(>F)
Drug           2 232.45  116.22  64.289 2.29e-10 ***
CellType       1  58.49   58.49  32.353 7.37e-06 ***
Drug:CellType  2  14.67    7.34   4.058   0.0303 *
Residuals     24  43.39    1.81
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Interpretation:

• Drug: Main effect of drug treatment
• CellType: Main effect of cell type
• Drug:CellType: Interaction effect (does the drug effect depend on cell type?)

A significant interaction means the effect of one factor depends on the level of the other factor.

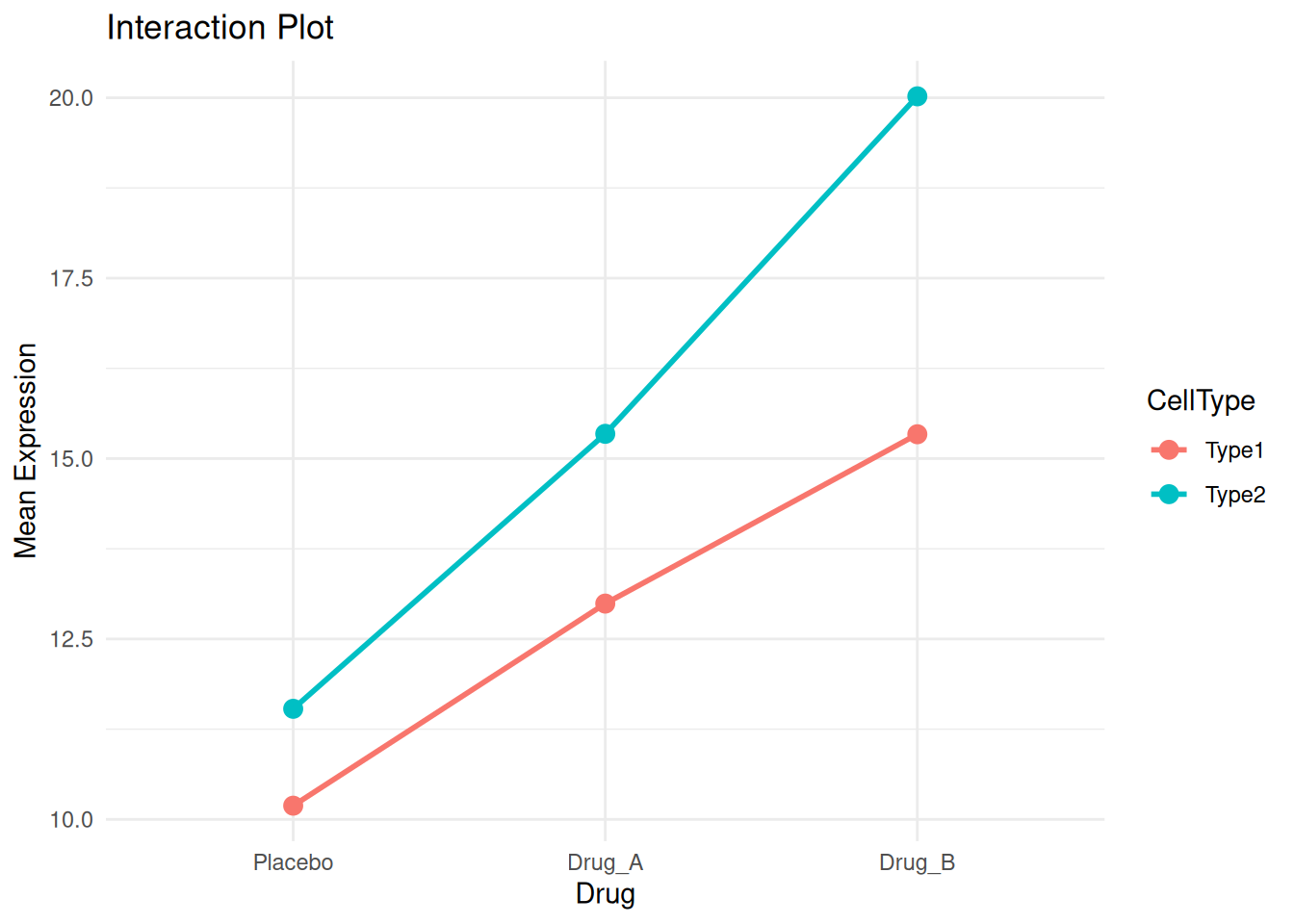

Interaction Plot

# Calculate means for interaction plot
interaction_means <- two_way_data %>%
  group_by(Drug, CellType) %>%
  summarise(Mean = mean(Expression), .groups = "drop")

ggplot(interaction_means, aes(Drug, Mean, color = CellType, group = CellType)) +
  geom_point(size = 3) +
  geom_line(linewidth = 1) +
  theme_minimal() +
  labs(title = "Interaction Plot", y = "Mean Expression")

Non-parallel lines suggest an interaction. Here, Drug_B shows a stronger effect in Type2 cells.

Post-hoc for Two-way ANOVA

TukeyHSD(two_way_result, which = "Drug")

  Tukey multiple comparisons of means
    95% family-wise confidence level

Fit: aov(formula = Expression ~ Drug * CellType, data = two_way_data)

$Drug
                   diff      lwr      upr    p adj
Drug_A-Placebo 3.305459 1.803818 4.807100 3.43e-05
Drug_B-Placebo 6.817309 5.315668 8.318951 0.00e+00
Drug_B-Drug_A  3.511850 2.010209 5.013492 1.47e-05

Repeated Measures ANOVA

When the same subjects are measured multiple times (e.g., before and after treatment), use repeated measures ANOVA.

# Simulated longitudinal data
set.seed(123)
n_subjects <- 10
repeated_data <- data.frame(
  Subject = factor(rep(1:n_subjects, 3)),
  Time = factor(rep(c("Baseline", "Week1", "Week2"), each = n_subjects)),
  Expression = c(
    rnorm(n_subjects, 10, 2),           # Baseline
    rnorm(n_subjects, 12, 2),           # Week 1 (slight increase)
    rnorm(n_subjects, 15, 2)            # Week 2 (larger increase)
  )
)

# Add subject-specific variation
subject_effect <- rep(rnorm(n_subjects, 0, 3), 3)
repeated_data$Expression <- repeated_data$Expression + subject_effect

head(repeated_data)

  Subject     Time Expression
1       1 Baseline  10.158441
2       2 Baseline   8.654431
3       3 Baseline  15.802794
4       4 Baseline  12.775417
5       5 Baseline  12.723319
6       6 Baseline  15.496051

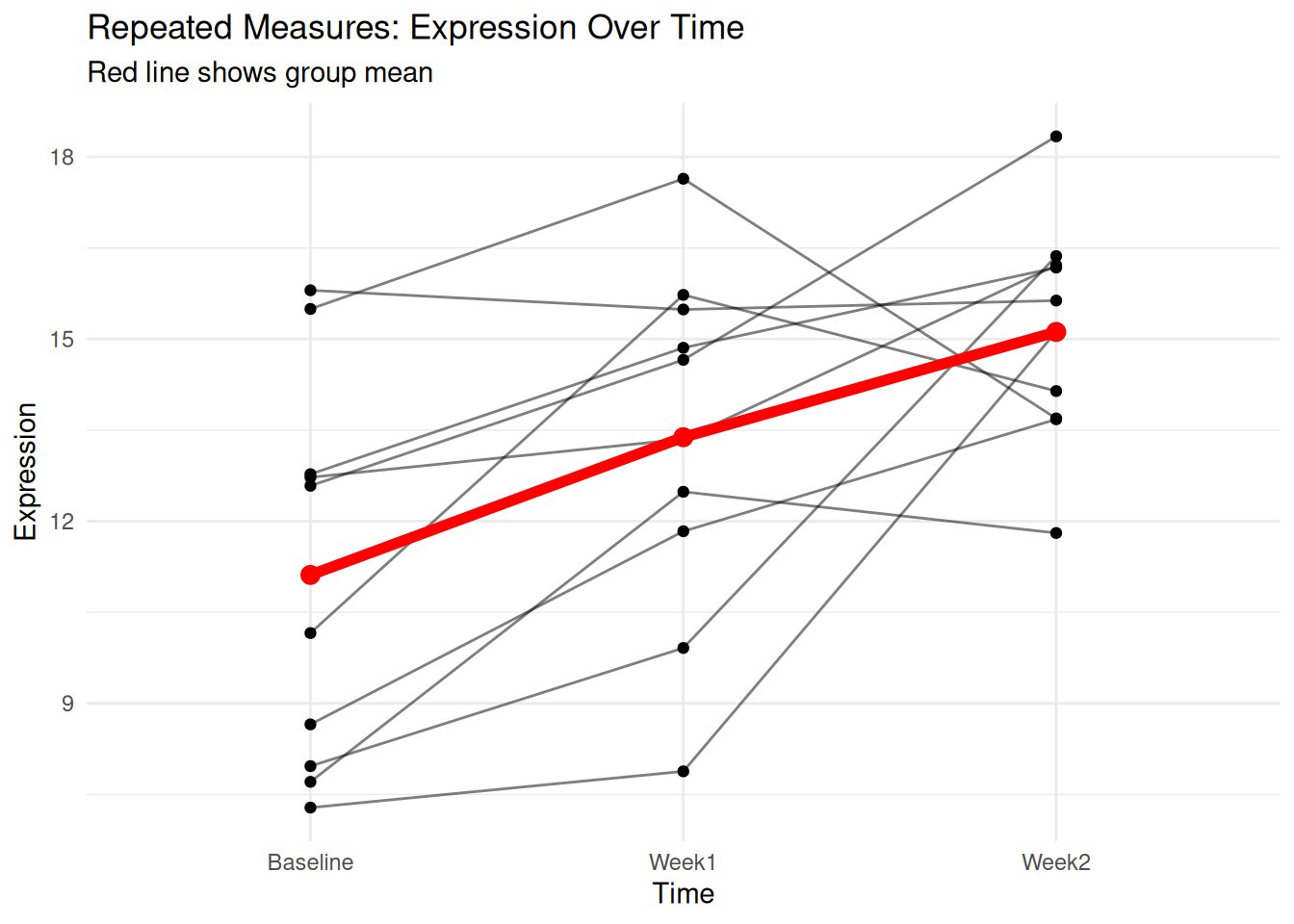

ggplot(repeated_data, aes(Time, Expression, group = Subject)) +
  geom_line(alpha = 0.5) +
  geom_point() +
  stat_summary(aes(group = 1), fun = mean, geom = "line",
               color = "red", linewidth = 2) +
  stat_summary(aes(group = 1), fun = mean, geom = "point",
               color = "red", size = 3) +
  theme_minimal() +
  labs(title = "Repeated Measures: Expression Over Time",
       subtitle = "Red line shows group mean")

# Repeated measures ANOVA (using Error term for subject)
repeated_result <- aov(Expression ~ Time + Error(Subject/Time), data = repeated_data)
summary(repeated_result)

Error: Subject
          Df Sum Sq Mean Sq F value Pr(>F)
Residuals  9  123.2   13.68

Error: Subject:Time
          Df Sum Sq Mean Sq F value  Pr(>F)
Time       2  80.54   40.27   9.467 0.00155 **
Residuals 18  76.57    4.25
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Non-parametric Alternative: Kruskal-Wallis Test

When ANOVA assumptions are violated, use the Kruskal-Wallis test:

# Using the gene expression data
kruskal.test(Expression ~ Condition, data = gene_expr)

    Kruskal-Wallis rank sum test

data:  Expression by Condition
Kruskal-Wallis chi-squared = 7.2, df = 2, p-value = 0.02732

Post-hoc for Kruskal-Wallis using Dunn’s test:

# Pairwise Wilcoxon tests with correction
pairwise.wilcox.test(gene_expr$Expression, gene_expr$Condition,
                     p.adjust.method = "BH")

    Pairwise comparisons using Wilcoxon rank sum exact test

data:  gene_expr$Expression and gene_expr$Condition

         control treated1
treated1 0.1     -
treated2 0.1     0.1

P value adjustment method: BH

Example: PlantGrowth Dataset

R’s built-in PlantGrowth dataset provides a good example:

data(PlantGrowth)
str(PlantGrowth)

'data.frame':   30 obs. of  2 variables:
 $ weight: num  4.17 5.58 5.18 6.11 4.5 4.61 5.17 4.53 5.33 5.14 ...
 $ group : Factor w/ 3 levels "ctrl","trt1",..: 1 1 1 1 1 1 1 1 1 1 ...

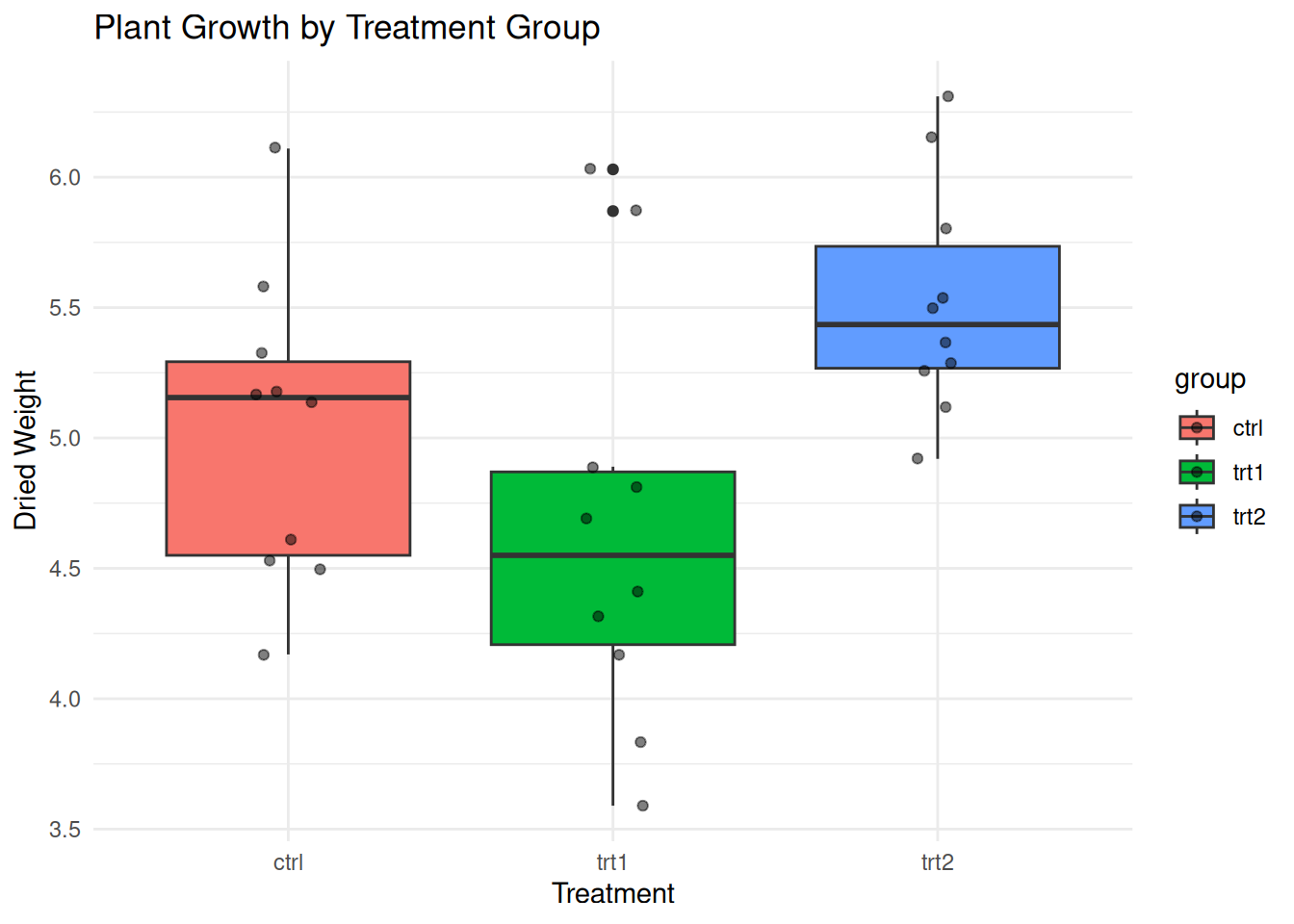

# Visualise
ggplot(PlantGrowth, aes(group, weight, fill = group)) +
  geom_boxplot() +
  geom_jitter(width = 0.1, alpha = 0.5) +
  theme_minimal() +
  labs(title = "Plant Growth by Treatment Group",
       x = "Treatment", y = "Dried Weight")

# ANOVA
plant_aov <- aov(weight ~ group, data = PlantGrowth)
summary(plant_aov)

            Df Sum Sq Mean Sq F value Pr(>F)
group        2  3.766  1.8832   4.846 0.0159 *
Residuals   27 10.492  0.3886
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

# Effect size
plant_ss <- summary(plant_aov)[[1]]$`Sum Sq`
cat("\nEta-squared:", round(plant_ss[1] / sum(plant_ss), 3), "\n")

Eta-squared: 0.264

# Post-hoc
TukeyHSD(plant_aov)

  Tukey multiple comparisons of means
    95% family-wise confidence level

Fit: aov(formula = weight ~ group, data = PlantGrowth)

$group
            diff        lwr       upr     p adj
trt1-ctrl -0.371 -1.0622161 0.3202161 0.3908711
trt2-ctrl  0.494 -0.1972161 1.1852161 0.1979960
trt2-trt1  0.865  0.1737839 1.5562161 0.0120064

Example: Simulating Different Scenarios

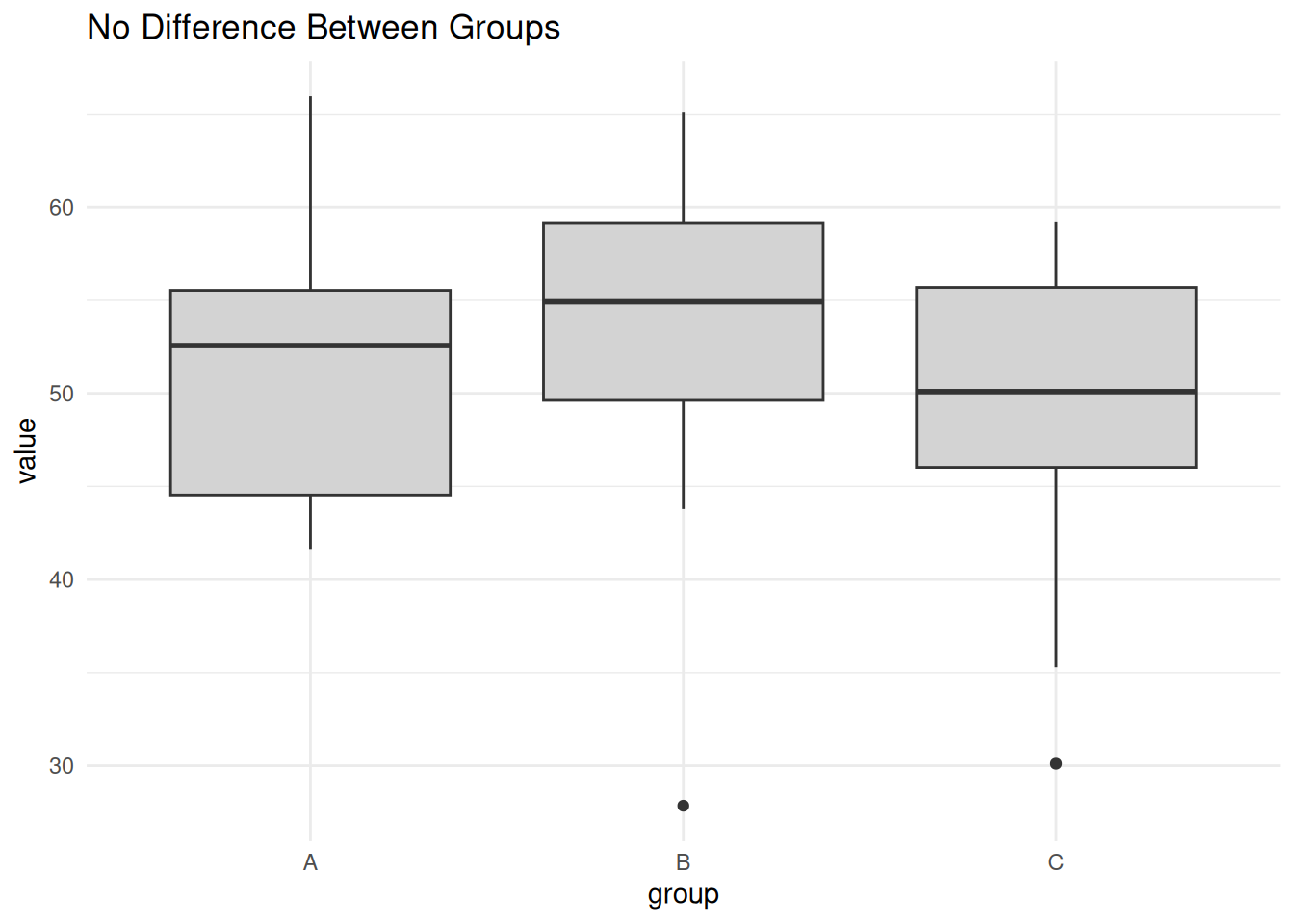

Scenario 1: No Difference Between Groups

set.seed(1)
no_diff <- data.frame(
  value = rnorm(30, mean = 50, sd = 10),
  group = factor(rep(c("A", "B", "C"), each = 10))
)

ggplot(no_diff, aes(group, value)) +
  geom_boxplot(fill = "lightgray") +
  theme_minimal() +
  labs(title = "No Difference Between Groups")

summary(aov(value ~ group, data = no_diff))

            Df Sum Sq Mean Sq F value Pr(>F)
group        2   76.9   38.44   0.432  0.653
Residuals   27 2399.7   88.88

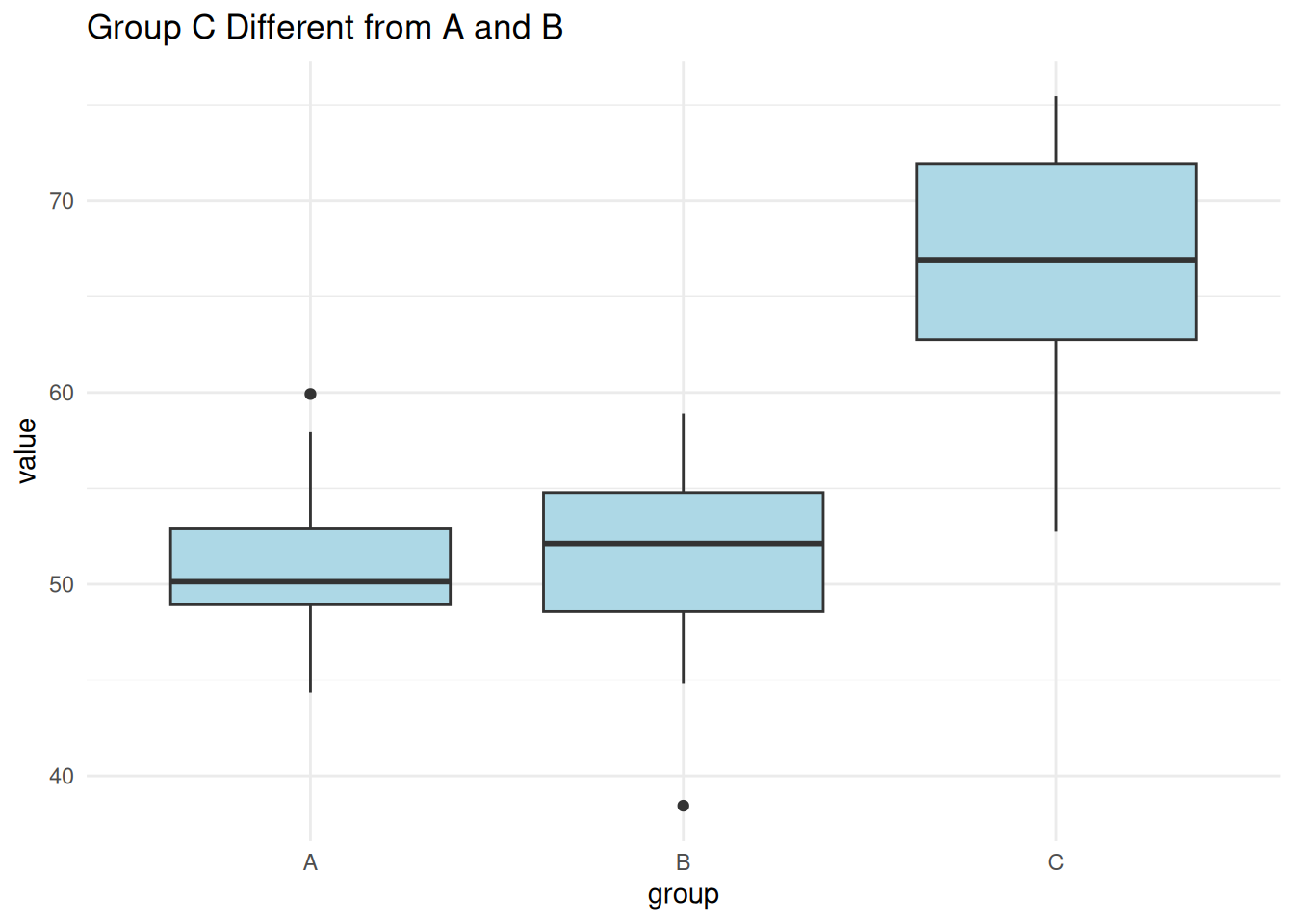

Scenario 2: One Group Different

set.seed(2)
one_diff <- data.frame(
  value = c(rnorm(10, 50, 5), rnorm(10, 50, 5), rnorm(10, 65, 5)),
  group = factor(rep(c("A", "B", "C"), each = 10))
)

ggplot(one_diff, aes(group, value)) +
  geom_boxplot(fill = "lightblue") +
  theme_minimal() +
  labs(title = "Group C Different from A and B")

summary(aov(value ~ group, data = one_diff))

            Df Sum Sq Mean Sq F value   Pr(>F)
group        2   1601   800.7   21.68 2.42e-06 ***
Residuals   27    997    36.9
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

TukeyHSD(aov(value ~ group, data = one_diff))

  Tukey multiple comparisons of means
    95% family-wise confidence level

Fit: aov(formula = value ~ group, data = one_diff)

$group
          diff       lwr       upr     p adj
B-A -0.1569061 -6.894852  6.581039 0.9981639
C-A 15.4197086  8.681763 22.157654 0.0000146
C-B 15.5766148  8.838669 22.314560 0.0000125

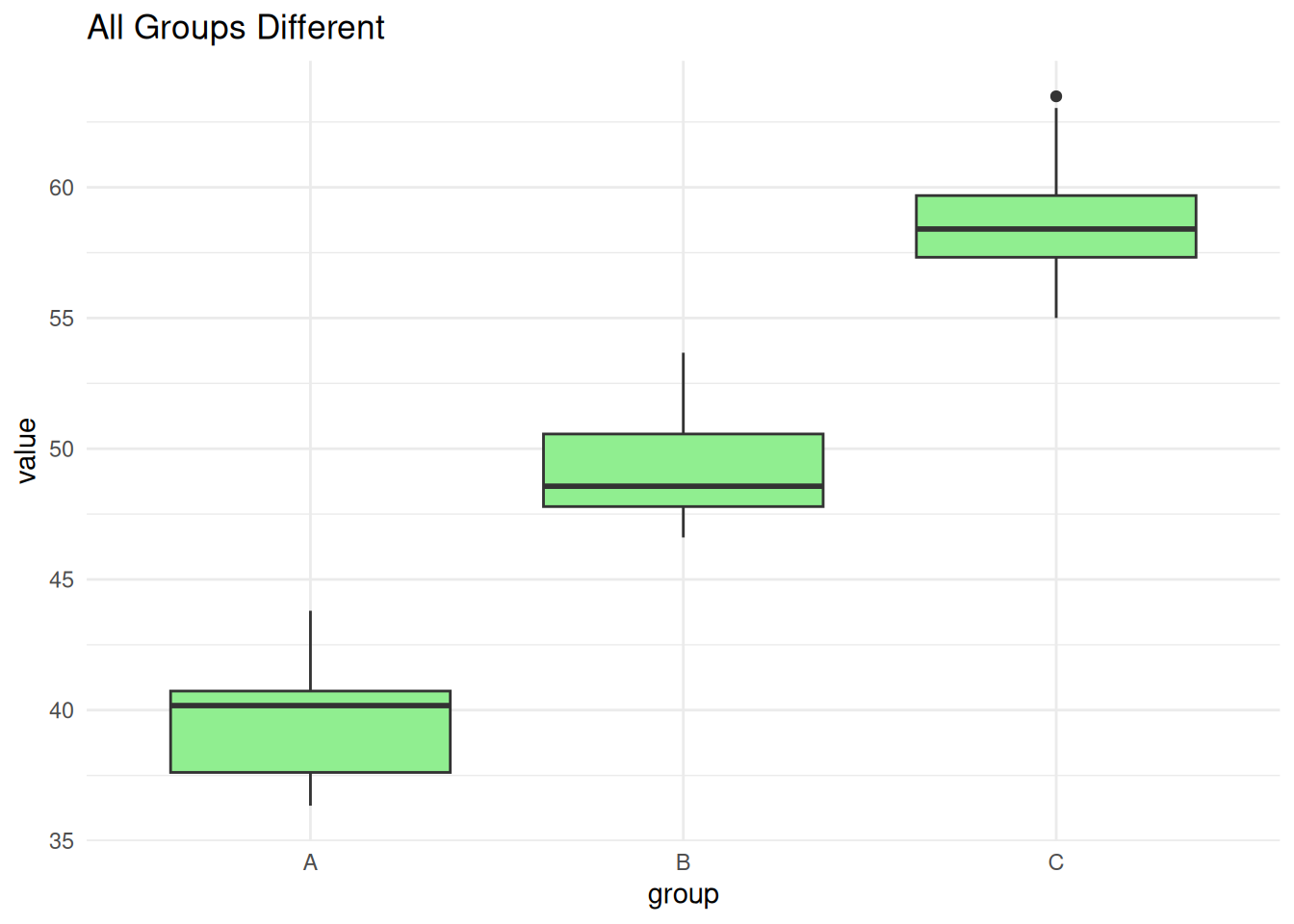

Scenario 3: All Groups Different

set.seed(3)
all_diff <- data.frame(
  value = c(rnorm(10, 40, 3), rnorm(10, 50, 3), rnorm(10, 60, 3)),
  group = factor(rep(c("A", "B", "C"), each = 10))
)

ggplot(all_diff, aes(group, value)) +
  geom_boxplot(fill = "lightgreen") +
  theme_minimal() +
  labs(title = "All Groups Different")

summary(aov(value ~ group, data = all_diff))

            Df Sum Sq Mean Sq F value   Pr(>F)
group        2 1825.3   912.6   147.3 2.98e-15 ***
Residuals   27  167.3     6.2
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

TukeyHSD(aov(value ~ group, data = all_diff))

  Tukey multiple comparisons of means
    95% family-wise confidence level

Fit: aov(formula = value ~ group, data = all_diff)

$group
         diff       lwr      upr p adj
B-A  9.399671  6.639651 12.15969     0
C-A 19.105599 16.345579 21.86562     0
C-B  9.705928  6.945907 12.46595     0

ANOVA vs. Linear Regression

ANOVA and linear regression are mathematically equivalent for comparing group means:

# Using PlantGrowth data
# ANOVA approach
aov_result <- aov(weight ~ group, data = PlantGrowth)

# Linear regression approach
lm_result <- lm(weight ~ group, data = PlantGrowth)

# Compare F-statistics
cat("ANOVA F-statistic:\n")

ANOVA F-statistic:

summary(aov_result)

            Df Sum Sq Mean Sq F value Pr(>F)
group        2  3.766  1.8832   4.846 0.0159 *
Residuals   27 10.492  0.3886
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

cat("\nLinear Model F-statistic:\n")

Linear Model F-statistic:

summary(lm_result)

Call:
lm(formula = weight ~ group, data = PlantGrowth)

Residuals:
    Min      1Q  Median      3Q     Max
-1.0710 -0.4180 -0.0060  0.2627  1.3690

Coefficients:
            Estimate Std. Error t value Pr(>|t|)
(Intercept)   5.0320     0.1971  25.527   <2e-16 ***
grouptrt1    -0.3710     0.2788  -1.331   0.1944
grouptrt2     0.4940     0.2788   1.772   0.0877 .
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Residual standard error: 0.6234 on 27 degrees of freedom
Multiple R-squared:  0.2641,    Adjusted R-squared:  0.2096
F-statistic: 4.846 on 2 and 27 DF,  p-value: 0.01591

# The anova() function on lm gives same result
anova(lm_result)

Analysis of Variance Table

Response: weight
          Df  Sum Sq Mean Sq F value  Pr(>F)
group      2  3.7663  1.8832  4.8461 0.01591 *
Residuals 27 10.4921  0.3886
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Summary

Key points about ANOVA:

1. Purpose: Compare means across 3+ groups
2. Null hypothesis: All group means are equal
3. F-statistic: Ratio of between-group to within-group variance
4. Assumptions: Independence, normality, homogeneity of variances
5. Post-hoc tests: Required to identify which groups differ
6. Effect size: Report \(\eta^2\) or \(\omega^2\) alongside p-values

Quick Reference

Situation	Test
Compare 2 groups	t-test
Compare 3+ groups, 1 factor	One-way ANOVA
Compare groups, 2 factors	Two-way ANOVA
Same subjects measured repeatedly	Repeated measures ANOVA
Assumptions violated	Kruskal-Wallis test
Unequal variances	Welch’s ANOVA

Reporting ANOVA Results

Example: “A one-way ANOVA revealed a statistically significant difference in gene expression between conditions, F(2, 6) = 50.17, p = 0.002, \(\eta^2\) = 0.94. Post-hoc Tukey HSD tests showed that treated2 had significantly higher expression than control (p = 0.002) and treated1 (p = 0.047).”

Session information

sessionInfo()

R version 4.5.0 (2025-04-11)
Platform: x86_64-pc-linux-gnu
Running under: Ubuntu 24.04.3 LTS

Matrix products: default
BLAS:   /usr/lib/x86_64-linux-gnu/openblas-pthread/libblas.so.3
LAPACK: /usr/lib/x86_64-linux-gnu/openblas-pthread/libopenblasp-r0.3.26.so;  LAPACK version 3.12.0

locale:
 [1] LC_CTYPE=en_US.UTF-8       LC_NUMERIC=C
 [3] LC_TIME=en_US.UTF-8        LC_COLLATE=en_US.UTF-8
 [5] LC_MONETARY=en_US.UTF-8    LC_MESSAGES=en_US.UTF-8
 [7] LC_PAPER=en_US.UTF-8       LC_NAME=C
 [9] LC_ADDRESS=C               LC_TELEPHONE=C
[11] LC_MEASUREMENT=en_US.UTF-8 LC_IDENTIFICATION=C

time zone: Etc/UTC
tzcode source: system (glibc)

attached base packages:
[1] stats     graphics  grDevices utils     datasets  methods   base

other attached packages:
 [1] lubridate_1.9.4 forcats_1.0.0   stringr_1.5.1   dplyr_1.1.4
 [5] purrr_1.0.4     readr_2.1.5     tidyr_1.3.1     tibble_3.3.0
 [9] ggplot2_3.5.2   tidyverse_2.0.0 workflowr_1.7.1

loaded via a namespace (and not attached):
 [1] sass_0.4.10        generics_0.1.4     stringi_1.8.7      hms_1.1.3
 [5] digest_0.6.37      magrittr_2.0.3     timechange_0.3.0   evaluate_1.0.3
 [9] grid_4.5.0         RColorBrewer_1.1-3 fastmap_1.2.0      rprojroot_2.0.4
[13] jsonlite_2.0.0     processx_3.8.6     whisker_0.4.1      ps_1.9.1
[17] promises_1.3.3     httr_1.4.7         scales_1.4.0       jquerylib_0.1.4
[21] cli_3.6.5          rlang_1.1.6        withr_3.0.2        cachem_1.1.0
[25] yaml_2.3.10        tools_4.5.0        tzdb_0.5.0         httpuv_1.6.16
[29] vctrs_0.6.5        R6_2.6.1           lifecycle_1.0.4    git2r_0.36.2
[33] fs_1.6.6           pkgconfig_2.0.3    callr_3.7.6        pillar_1.10.2
[37] bslib_0.9.0        later_1.4.2        gtable_0.3.6       glue_1.8.0
[41] Rcpp_1.0.14        xfun_0.52          tidyselect_1.2.1   rstudioapi_0.17.1
[45] knitr_1.50         farver_2.1.2       htmltools_0.5.8.1  labeling_0.4.3
[49] rmarkdown_2.29     compiler_4.5.0     getPass_0.2-4
